 Posted - 03/22/2012 : 6:32:08 PM
|
I am looking for an idea from someone on how I can get my motor up without using a jack plate. I am not against a jack plate, but if I get one, I want a hydraulic one and I don't want to spend that much. My cav plate is 2 inches below the bottom of the transom. I would like the added bottom clearance and help with porpoising.

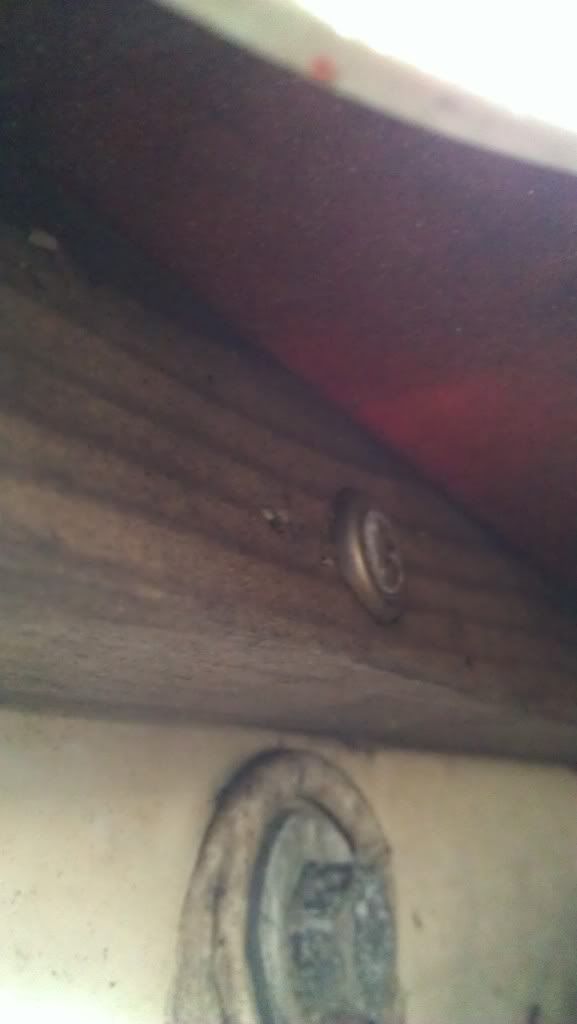

My problem is my bottom bolts are too low. I have no room in the slot to go up. I can't drill holes and move them up because they are already sitting on the underside of the motorwell. I would have to cut out the supporting wood just to gain 1 inch when I need 2 or 3.
2000 McKee Scoundrel 160, Honda 75hp |
Edited by - MattR on 03/22/2012 7:02:09 PM |
|
|
hairball
Senior Member
1604 Posts |
Posted - 03/22/2012 : 6:49:33 PM
|
I think you answered your own question on options. You can get a static set back plate instead of a jack plate for not much $$. Otherwise, save some money for a hyd. jack plate.
FYI, proper terminology is an anti-ventilation plate. It has nothing to do with cavitation.
Iain Pelto
Sea Hunt Triton 160 w/ 90 ETEC "JB3"
Native Manta Ray 14
|
 |
|
|
chris V
Senior Member
7060 Posts |
|
|
MattR
Senior Member
607 Posts |
Posted - 03/22/2012 : 7:08:05 PM
|
quote:
Originally posted by hairball
I think you answered your own question on options. You can get a static set back plate instead of a jack plate for not much $$. Otherwise, save some money for a hyd. jack plate.
FYI, proper terminology is an anti-ventilation plate. It has nothing to do with cavitation.
Iain Pelto
Sea Hunt Triton 160 w/ 90 ETEC "JB3"
Native Manta Ray 14
I actually knew that about the terminology. I had some brain fade. I was just happy I figured out how to do this post from my cell phone with pics.
I guess I have to put a hydraulic plate on my list. If I am going through the trouble of mounting a plate I want to be able to adjust on the fly.
2000 McKee Scoundrel 160, Honda 75hp |
|
|
|
dernflatlander
Senior Member
1257 Posts |
Posted - 03/23/2012 : 7:42:11 PM
|
| Tell us more about that "supporting wood". It appears that the bolt holes are not drilled at BIA standards, therefore, when you try to install a jackplate the holes won't match and you'll be facing the same dilema. Why is there raw wood there? |
|
|
|
MattR
Senior Member
607 Posts |
Posted - 03/23/2012 : 9:01:27 PM
|
quote:
Originally posted by dernflatlander
Tell us more about that "supporting wood". It appears that the bolt holes are not drilled at BIA standards, therefore, when you try to install a jackplate the holes won't match and you'll be facing the same dilema. Why is there raw wood there?
That wood is under the bait wells/motor well. I do not like it there either and its on my list of things to re-do. I got this boat about 2 months ago. The bolt holes are not to standards and I have an email in to Bobs machine about that. I will have to drill new lower holes in a plate unless bobs can do it for me.
2000 McKee Scoundrel 160, Honda 75hp |
|
|
|
Cracker Larry
Senior Member
1548 Posts |
Posted - 03/24/2012 : 07:43:49 AM
|
I would fill all the old holes and re-drill the transom to industry standards. Whoever drilled those holes didn't have a clue.
Capt. Larry Teuton
Cracker Built Custom Boats |
Edited by - Cracker Larry on 03/24/2012 07:44:50 AM |
|
|
|
MattR
Senior Member
607 Posts |
Posted - 03/24/2012 : 12:07:30 PM
|
quote:
Originally posted by Cracker Larry
I would fill all the old holes and re-drill the transom to industry standards. Whoever drilled those holes didn't have a clue.
Capt. Larry Teuton
Cracker Built Custom Boats
That will not work. If I move the holes up until the bottom holes are above the splash well, the top bolts will be within 1/2in of the top of the transom. The guys with smaller whalers have the same issue. Some of them use a lag bolt on the bottom holes which I am not going to do.
I believe I am going to get some 6061 3x1/2 bar stock and 316 countersink bolts to make an adapter to raise the motor. I think I am going to have problems with any jack plate because my bolt spacing is 9 1/2 not the 8in standard. Also, a jack plate may interfere with my livewell fittings since there is little clearance at the bottom bolts.
I hope all this effort will be worth it.
2000 McKee Scoundrel 160, Honda 75hp |
Edited by - MattR on 03/24/2012 1:07:27 PM |
|
|
|
chris V
Senior Member
7060 Posts |
Posted - 03/26/2012 : 7:30:42 PM
|
wouldnt it be easier to cut out a small curve of that wood and redrill to standard spacing, then just raise the motor with the standard mounting bolts?
www.teamcharlestonmarine.com
www.joinrfa.org |
|
|
|
MattR
Senior Member
607 Posts |
Posted - 03/31/2012 : 6:45:05 PM
|

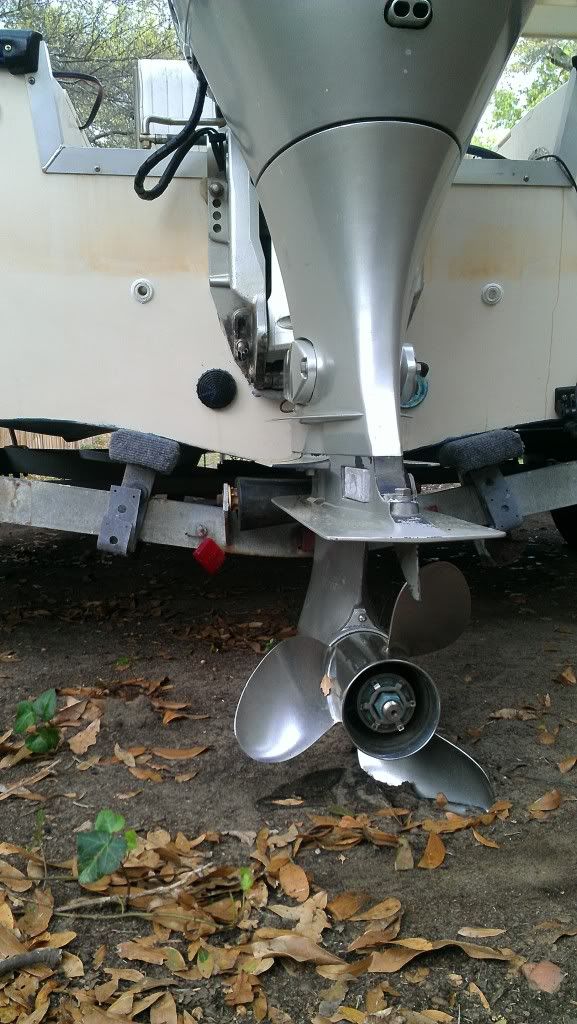

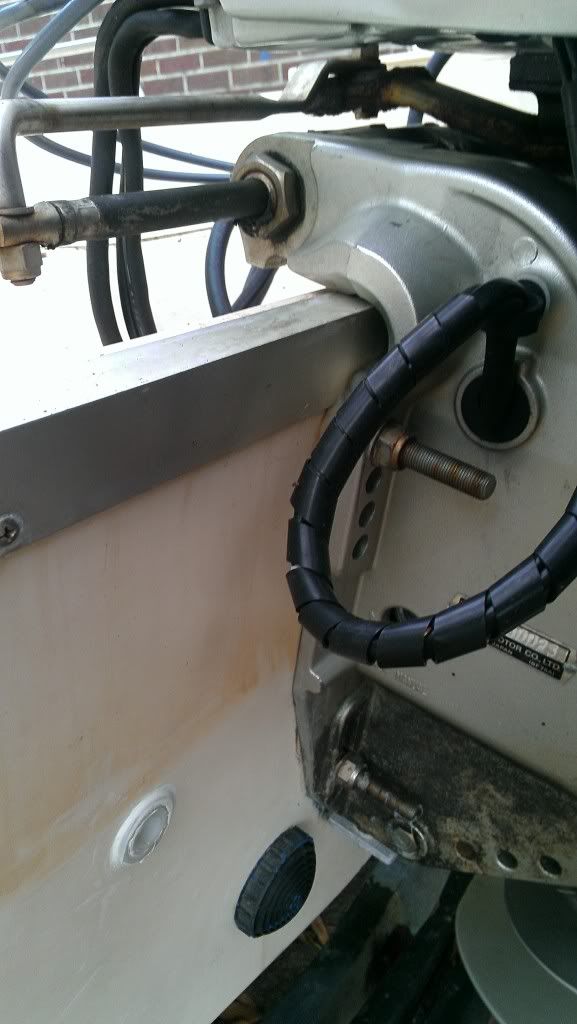

I think this is my best work around. It was difficult locating 1/2in 316 countersink bolts and a 7/8in 82* countersink bit. This is what I came up with for now

It raised the plate to be even with the bottom of the transom. I am excited to try it out and see what the 2 inches did to it.
2000 McKee Scoundrel 160, Honda 75hp |
|
|
|
chris V
Senior Member
7060 Posts |
|
|
MattR
Senior Member
607 Posts |
Posted - 04/01/2012 : 10:21:21 PM
|
quote:
Originally posted by chris V
excellent idea
www.teamcharlestonmarine.com
www.joinrfa.org
Thank you. I gave it a good workout today and it held up great. The av plate is still submerged at speed. It did not add to the top end at all. Still 37mph at 5400. I can hold plane at 16mph now which is 3 mph slower than before. It seems to get on plane a good bit quicker too. It was not as good as what I was expecting. I think a jack plate may be added in the near future and possibly a new prop.
2000 McKee Scoundrel 160, Honda 75hp |
|
|
|
Loosewire
Senior Member
1495 Posts |
Posted - 04/02/2012 : 09:53:46 AM
|
Get one and raise it a little more. I gained 7-8 mph on my top end by adding a manual jack plate and installing the correct SS prop on my Suzuki 140 which is mounted on a 21' Tidewater Bay Max. The boat was a pig when I sea-trialed it, but I knew what the problem was as soon as it got on plane. The plate was a good 2" below the bottom of the boat and moving it up on the transom to the lowest mounting bracket holes would not have been enough. With the 4" set-back of the jack plate and trimming the motor, I'm now running ~2" higher than the bottom of the boat.
 |
|
|
| |
